The SleepSense Embla Airflow Thermistor is comprised of 3 thermistors (heat-sensitive resistors). It is placed under the patient's nostrils and produces a signal that is directly proportional to the temperature changes of air inhaled and exhaled during respiration.

Warranty: 6 Months - Free of Defects in Materials and Quality Workmanship.

The sensor generates a small analog electrical voltage that provides a clear, reliable indication of respiration airflow. It is specifically designed for Embla systems.

NOTE: SleepSense items are for professional use only, and are for sale by or on the order of a physician only.

Specifications

SleepSense Embla Airflow Thermistor Specifications

• Sensor: Thermistor.
• Technology: Small rounded TPE center with 3 prongs.
• Signal Output: Approximately 1 mV for normal respiration with interface box.
• Operating Conditions: 40 to 104 ┬░F.
• Storage Temperature: -4 to 140 ┬░F.
• Operating and Storage Temperature: 5 to 95% (non-condensing).

Lengths

SleepSense Embla Airflow Thermistor Lengths

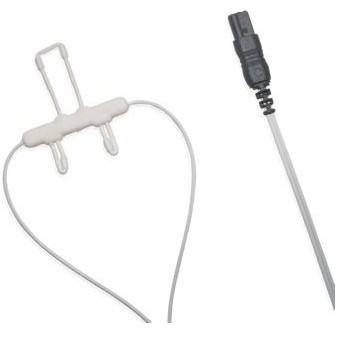

• #1468: 23.5" (60 cm) - Key connector.

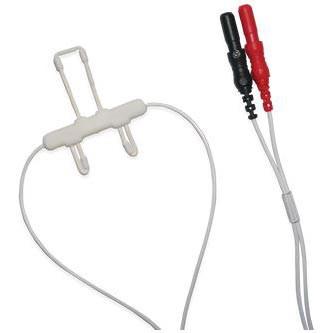

• #1469: 78" (200 cm) - Standard DIN connector.

Compatibility

SleepSense Embla Airflow Thermistor Compatibility:

NOTE: The following products from these medical brands are compatible with the 1468 - Key Connector configuration ONLY:

Literature

SleepSense Embla Airflow Thermistor Literature

SleepSense Thermal Flow Sensors User Manual
