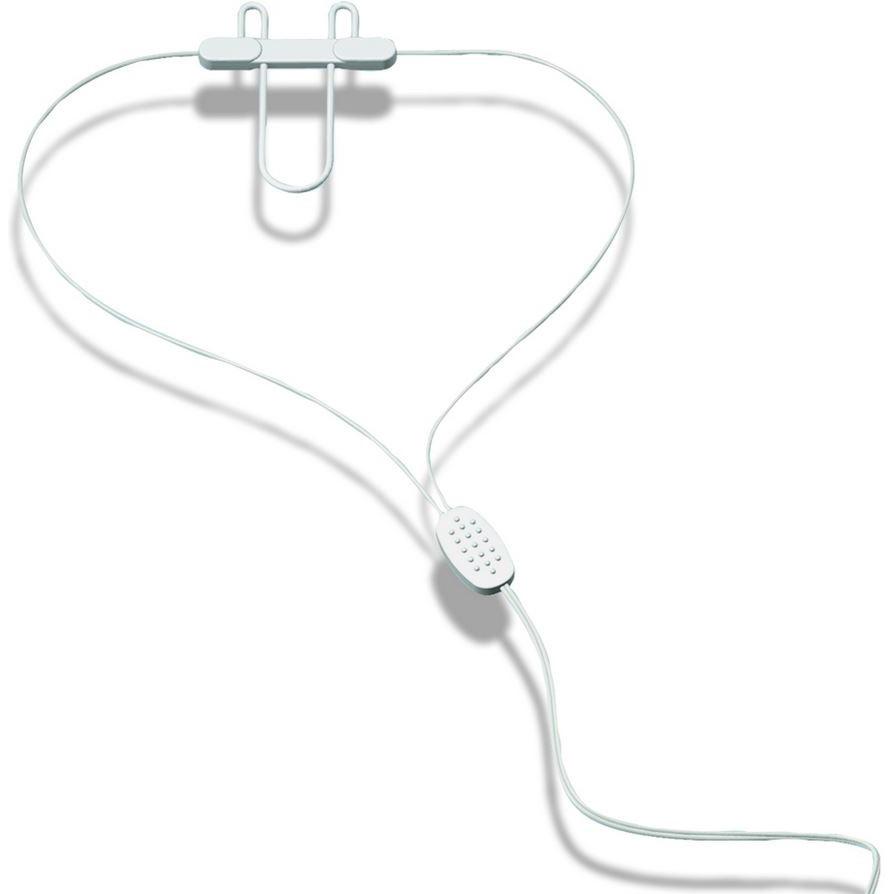

The SleepSense Adult ThermoCouple Flow Sensor (# 1401) with standard DIN connectors employs a high thermal mass design. This provides improved correlation with flow values as well as temperature values.

Warranty: 6 Months - Free of Defects in Materials and Quality Workmanship.

Designed with stiff prongs that are adjustable for patient comfort, these sturdy and durable sensors will deliver a smooth flow signal throughout the night.

Comprised of heat-sensitive elements, the respiration flow sensor is placed under the patient's nostrils and produces a signal that is directly proportional to the temperature changes of air inhaled and exhaled during respiration. The sensor generates a small analog electrical voltage that provides a clear, reliable indication of respiration airflow.

The sensor should be connected to your system's thermal-flow input or, when using the interface, to any AC (low level) channel on the recorder.

NOTE: SleepSense items are for professional use only, and are for sale by or on the order of a physician only.

Features

SleepSense Adult ThermoCouple Flow Sensor Features

• Nasal/oral prongs adjust for optimal patient comfort.
• Low internal resistance produces minimal noise.
• Small size and smooth contour.

Specifications

SleepSense Adult ThermoCouple Flow Sensor Specifications

• Technology: Small rounded TPE center with 3 prongs.
• Recommended Filter Settings (or as recommended in the system's instructions):
  • High Pass: 0.1 Hz.
  • Low Pass: 70 Hz.
• Signal Output: Approximately 0.2 mV for normal respiration.
• Operating Temperature: 40 to 104 ┬░F (5 to 40 ┬░C).
• Storage Temperature: -4 to 140 ┬░F (-20 to 60 ┬░C).
• Operating/Storage Humidity: 5 to 95% (non-condensing).

Compatibility

SleepSense Adult ThermoCouple Flow Sensor Compatibility

The SleepSense Adult ThermoCouple Flow Sensor is compatible with the following products from these medical brands:

Literature

SleepSense Adult ThermoCouple Flow Sensor Literature

SleepSense Thermal Flow Sensors User Manual
